HydraNet MoE Model

A plain-language explanation of the HydraNet student Mixture-of-Experts model: what pieces it has, how routing works, and how the switcher is trained.

Back to Repository Docs Topology Training Flow Code Pointers

Quick Summary

The model has three main parts:

  1. A shared encoder reads the satellite image once and turns it into compact features.
  2. A routing switcher looks at those features and predicts which expert tasks are relevant.
  3. Task-specific expert decoders produce the final task outputs, such as fire or roads.
The expensive visual feature extraction is shared, while the task-specific behavior lives in separate experts.

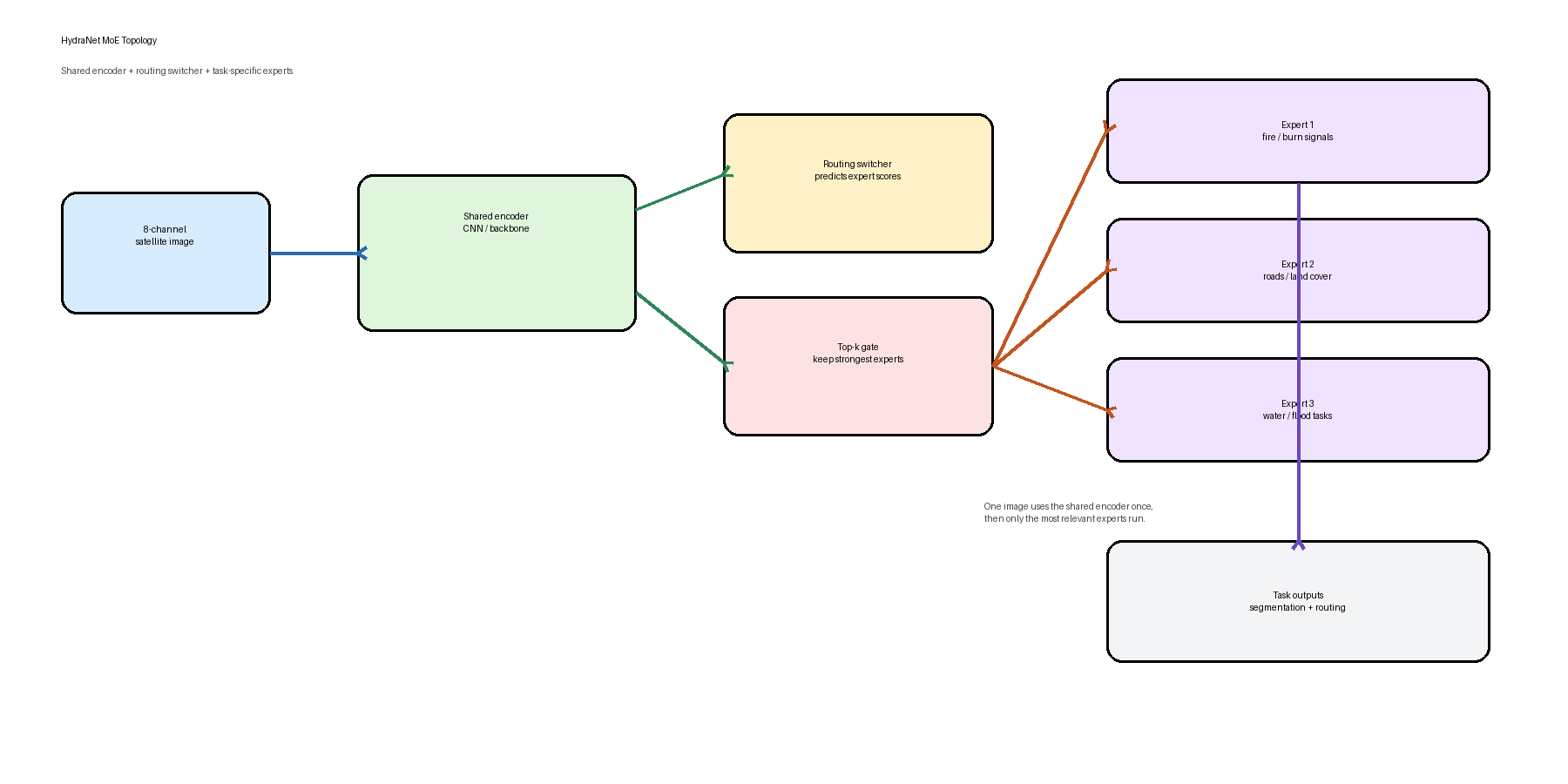

Topology

The shared encoder extracts common features once, the switcher predicts expert scores, and the top experts decode the output.

HydraNet MoE topology diagram
Download the diagram as PNG or PDF.

How It Works

  1. The input is an 8-channel satellite image.
  2. The shared encoder extracts a common feature representation.
  3. The switcher predicts a score for each expert.
  4. The model keeps the top-k experts with the strongest routing scores.
  5. Those experts decode the shared features into task-specific outputs.

In practice, one sample can activate different experts depending on what the image contains.

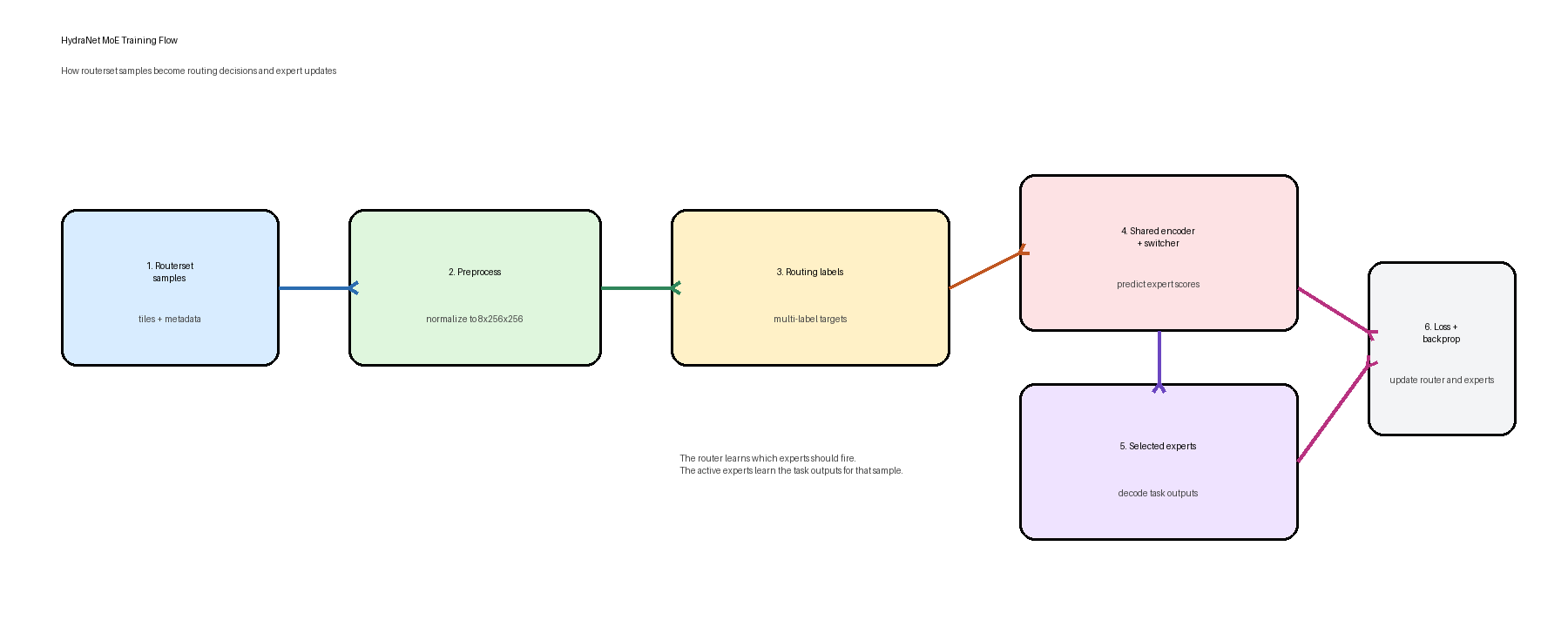

Training Flow

Training uses routerset samples and multi-label routing targets so the switcher learns which expert heads should activate.

HydraNet MoE training flow diagram
Download the diagram as PNG or PDF.

Data Preparation

  1. Routerset samples are normalized and tiled into the fixed 8x256x256 shape.
  2. Each sample gets a multi-label routing target saying which experts should activate.

Optimization

  1. The switcher predicts routing logits from the encoder bottleneck.
  2. A BCE loss compares predicted expert activations against the routing target.
  3. The current setup trains the switcher while keeping the encoder and expert decoders frozen.

Why This Design Exists

  • It avoids running a separate full model for every task.
  • It keeps a shared visual backbone across tasks.
  • It still allows task specialization through expert decoders.
  • It makes routing explicit, so expert selection is inspectable.

Code Pointers

  • Model assembly: src/hydranet/models/moe_student.py
  • Training wrapper: src/hydranet/moe_lightning.py
  • End-to-end training entrypoint: scripts/full_train_moe.py
  • Train-only switcher entrypoint: scripts/train_moe_switcher.py
